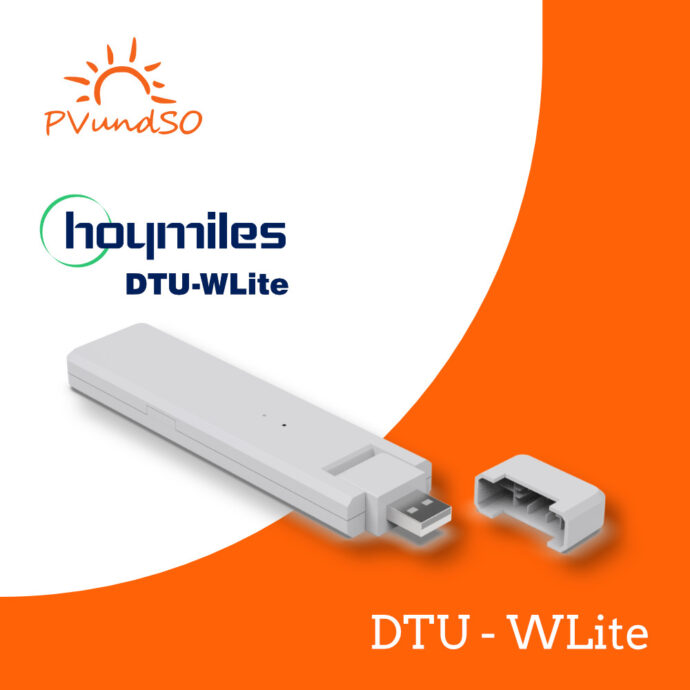

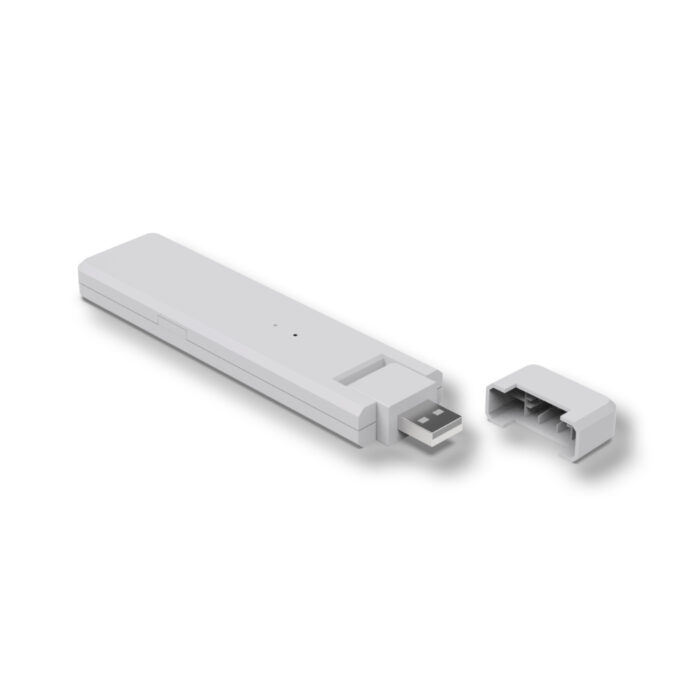

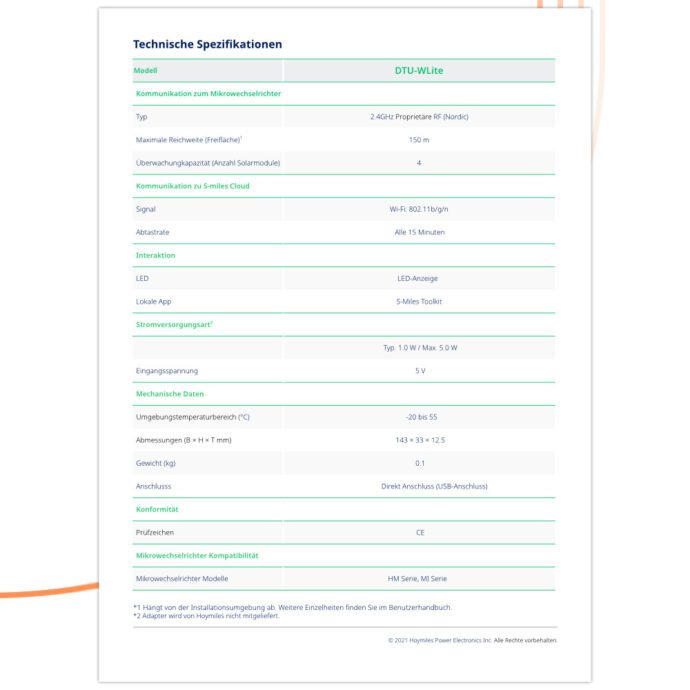

How to measure the power output of your balcony power plant Visualization using Hoymiles DTU-WLite The Hoymiles Gateway DTU-WLite is an efficient data transmission unit that uses 2,4 GHz wireless communication to collect information and data from the microinverter. This data is then forwarded to the Hoymiles monitoring system, S-Miles Cloud, using Wi-Fi technology. DTU-WLite is specifically designed for small PV systems with a monitoring capacity of up to 4 solar modules. Users can easily retrieve module-level data and alarms, perform remote control functions, and carry out maintenance on the PV system anytime, anywhere via the S-Miles Cloud. Technical data: Dimensions: 143 × 33 × 12,5 mm Weight: 0,1 kg Communication with micro-inverters: Proprietary 2,4 GHz RF (Nordic) Internet connection: WLAN (802.11b/g/n) Power consumption: Typ. 1,0 W / max. 5,0 W Monitoring capacity: 4 PV modules Maximum distance (open space): 150 m Installation: Direct plug-in (USB connection) Only for Hoymiles HM series inverters (HM600, HM800, HM1200, Hm1500,…). For inverters of the HMS series you will need Hoymiles DTU-WLite-S (for HMS series microinverters) Downloads DTU-WLite datasheet Quick Start Guide DTU-WLite DTU-WLite manual
