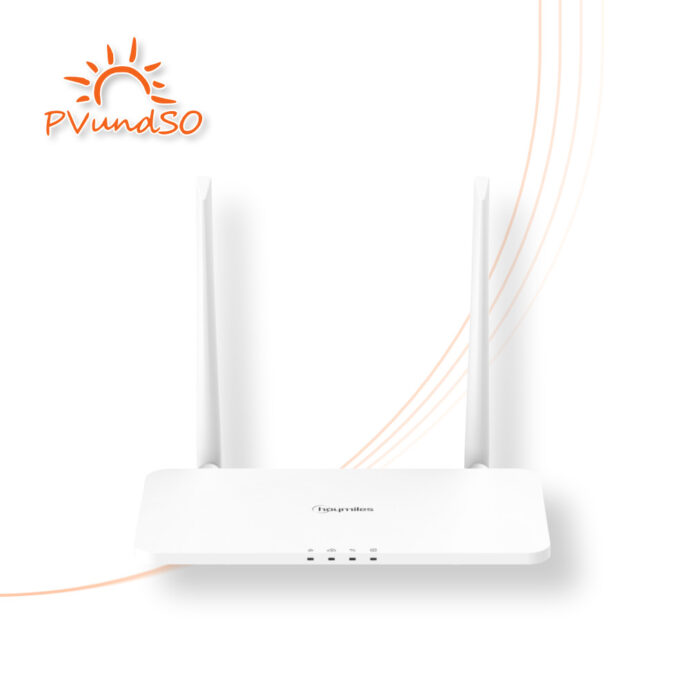

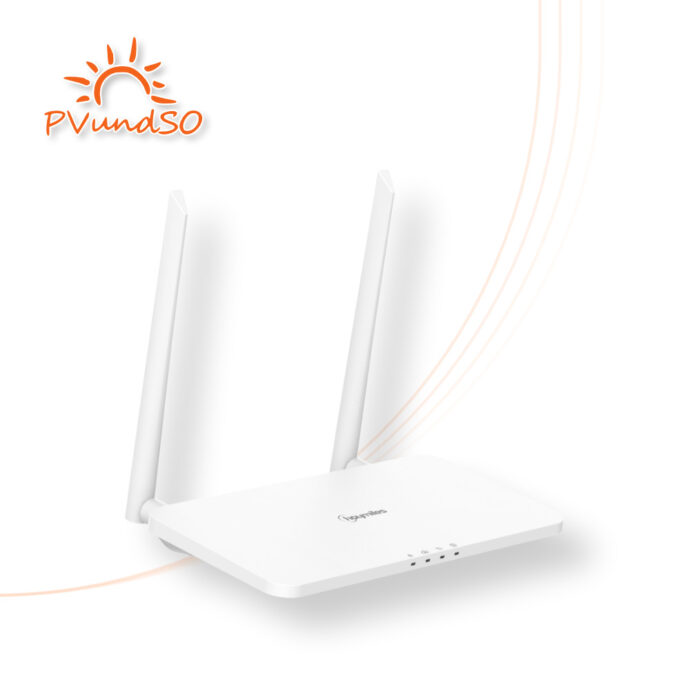

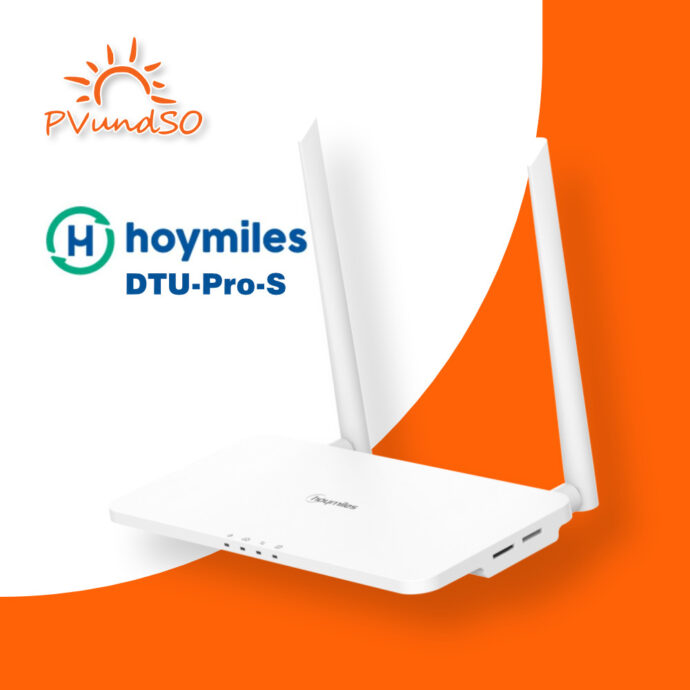

DTU-Pro-S Hoymiles (for HMS/HMT series)

Features: Reliable and flexible • The wireless sub-1G radio solution enables stable communication with HMS and HMT series micro-inverters. • Communication with the S-Miles Cloud, Hoymiles' monitoring platform, takes place via WLAN or Ethernet. • Support RS485, Ethernet to communicate with peripheral devices Simple and efficient O&M • Module level monitoring and data storage • Local configuration using the S-Miles Toolkit • Support for remote O&M including remote upgrades, Parameter setting Intelligent • Intelligent zero export control and Power export limitation • Monitoring of PV generation and load consumption   Technical data: • Dimensions (W × H × D): 200 × 101 × 29 mm (without antennas) • Power consumption: Typical 1,5 W / Max. 3,0 W • Weight: 0,20kg • Limit value for monitoring data from solar modules: 99 • Communication with micro-inverters: Sub-1G • Maximum distance (open terrain): 400m • Communication with S-miles Cloud: Ethernet (RJ45 × 1, 100Mbps) WLAN (802,11b/g/n)   Downloads Data sheet Quick start guide Manual
