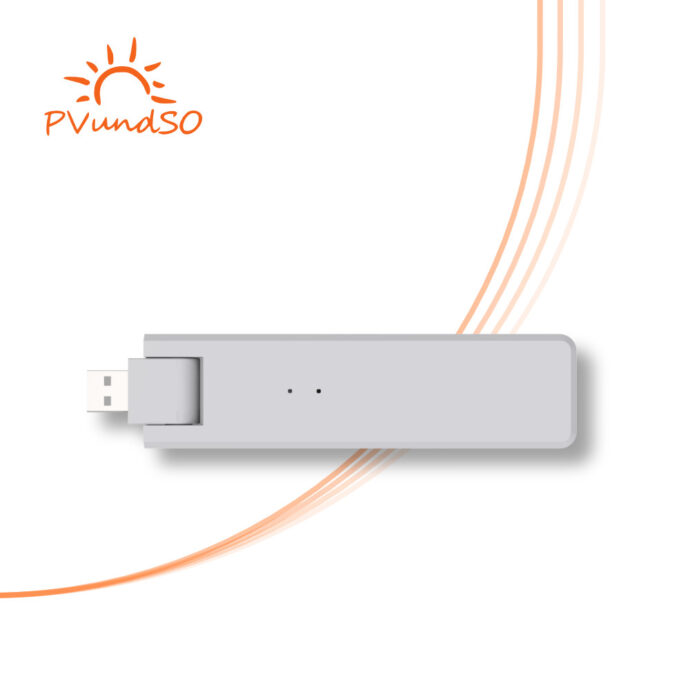

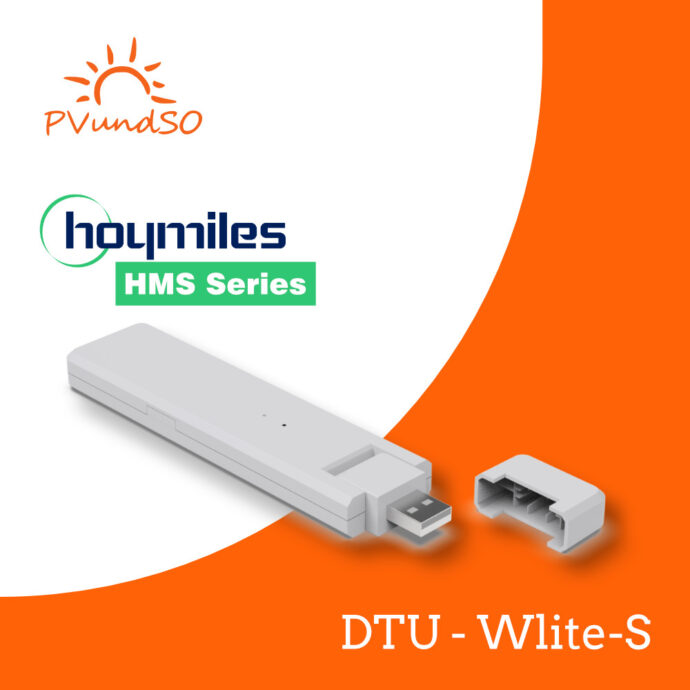

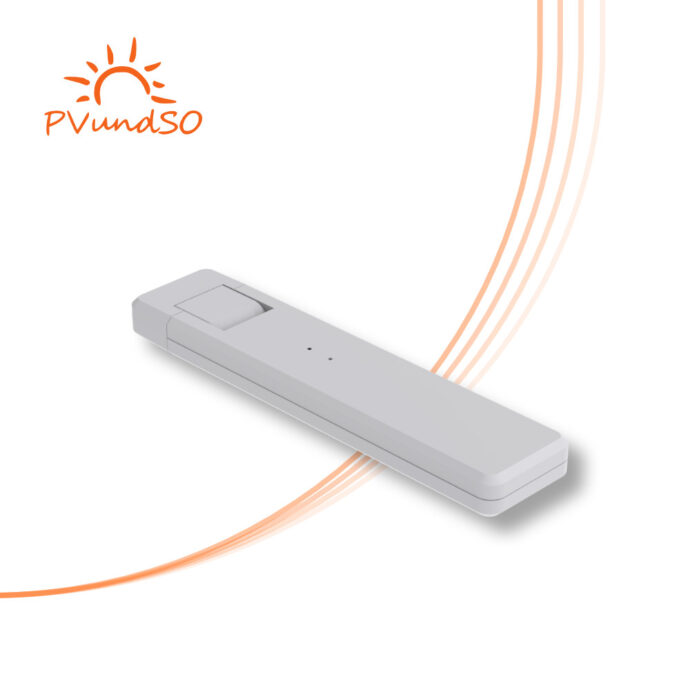

Hoymiles DTU-WLite-S (for HMS series microinverters)
$48.64
$94.84
How to measure the power output of your balcony power plant Visualization using Hoymiles DTU-WLite-S The Hoymiles Gateway DTU-WLite-S is an efficient data transmission unit that uses wireless Sub-1G connection The information and data from the microinverter are recorded. This data is then forwarded to the Hoymiles monitoring system, S-Miles Cloud, using Wi-Fi technology. DTU-WLite-S is specifically designed for small PV systems with a monitoring capacity of up to 4 solar modules. Users can easily retrieve module-level data and alarms, perform remote control functions, and carry out maintenance on the PV system anytime, anywhere via the S-Miles Cloud. Technical data: Dimensions: 143 × 33 × 12,5 mm Weight: 0,1 kg Communication with micro-inverters: Sub-1G Internet connection: WLAN (802.11b/g/n) Power consumption: Typ. 1,0 W / max. 5,0 W Monitoring capacity: 4 PV modules Sampling rate: Every 15 minutes Maximum distance (open space): 400 m Installation: Direct plug-in (USB connection) Downloads Datasheet DTU-WLite-S Quick Start Guide DTU-WLite-S DTU-WLite-S manual
