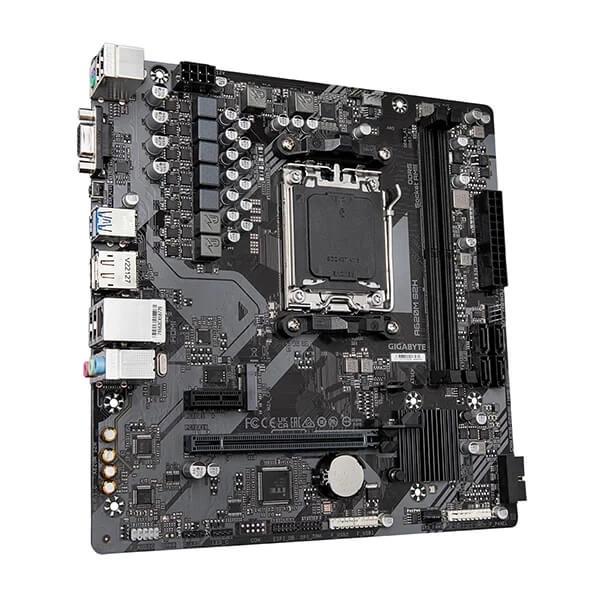

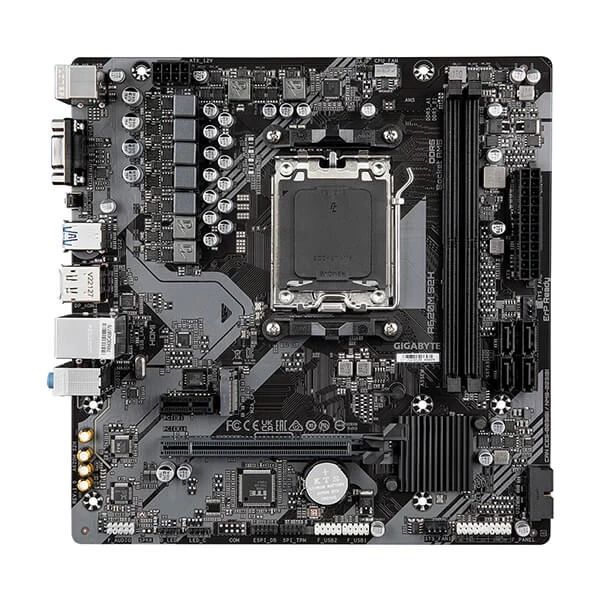

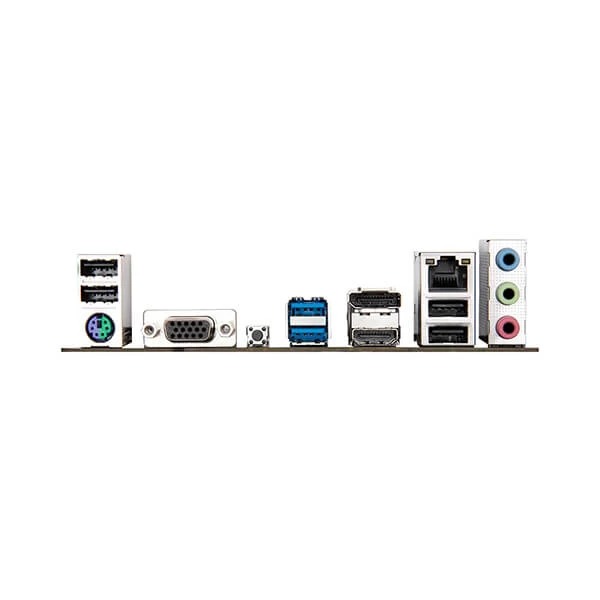

Gigabyte A620M S2H Motherboard (rev. 1.0)FeatureAMD Socket AM5: Supports AMD Ryzen™ 7000 Series ProcessorsUnparalleled Performance: 5 2 2 Phases Digital VRM SolutionDual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module SupportSuperSpeed Storage: PCIe 4.0 x4 M.2 ConnectorEZ-Latch: PCIe x16 Slot with Quick Release DesignFast Networks: GbE LANExtended Connectivity: DP, HDMI, D-SubSmart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card5 2 2 Phases Digital VRM Solution with Low RDS(on) MOSFETsGIGABYTE UD series motherboards use a 5 2 2 phases digital PWM Low RDS(on) MOSFETs design to support AMD’s new generation CPU by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.Benefits of Low RDS(on) MOSFETsOptimized gate charge to minimize switching losses.Lower temperature, smaller size, better thermal characteristics.PCIe 4.0 Hardware DesignGIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.PCIe 4.0 x16 slot with faster bandwidth and lower impedance.M.2 PCIe 4.0 x4 slot with lower impedance.DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.* EXPO / XMP profiles support may vary depending on memory modules. Please refer the completed validated memory support list. Product features may vary by model.Unlock DDR5 VoltageGIGABYTE exclusive circuit design unlocks Native DDR5 voltage controlTransforms Native DDR5 memory module to Overclocked DDR5 memoryIncreases DDR5 memory overclocking performance and capabilitySupports all PMIC vendors for maximum compatibilitySMART FAN 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.Cooling FeaturesHigh Current SupportEach fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision ControlMultiple temperature/fan speed control points for precise fan curveDual Curve ModeSlope/Stair dual mode for different user scenarioFan StopFan can stop completely below users’ specified temperature pointGbE LAN with Bandwidth ManagementGbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.Friendly User InterfaceThe EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.My FavoritesAdd constantly used items into the favorite menu for quick access.Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.GIGABYTE Control CenterGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.Unified software platform for all Gigabyte supported productsIntuitive user interface for an eased experienceModularized control components only for installed hardwareAuto update function to keep system up to date and support future productsQ-Flash PlusUpdate the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
