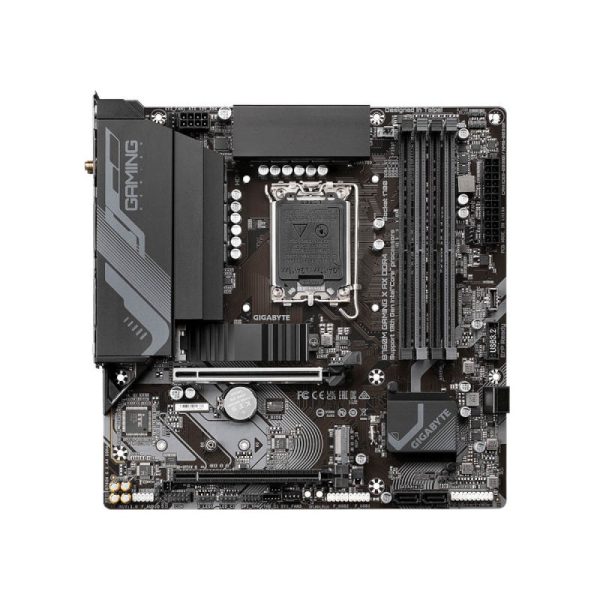

Gigabyte B760m Gaming X AX DDR4 Motherboard Supports Intel 12th, 13th & 14th Gen Processors

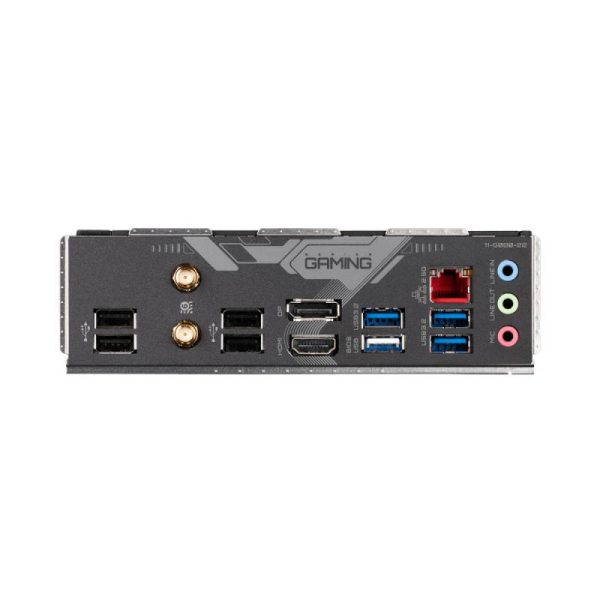

GIGABYTE B760m Gaming X AX DDR4 (LGA 1700/ Intel/ B760/ ATX/ DDR4/ Triple M.2/ PCIe 4.0/ Front USB 3.2 Gen2X2 Type-C/WiFi 6E/ 2.5GbE LAN/Q-Flash Plus/PCIe EZ-Latch/Gaming Motherboard)FeatureSupports Intel® Core™ 14th/ 13th /12th processorsUnparalleled Performance：Hybrid 8 1 1 Phases Digital VRM SolutionDual Channel DDR4：4*DIMMs XMP Memory Module SupportNext Generation Storage：2*PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD PerformanceEZ-Latch：PCIe 4.0×16 Slot with Quick Release DesignFast Networks：2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity：Front USB-C® 10Gb/s, DP, HDMISmart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics CardUNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.Hybrid Digital VRM DesignTo ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.To unleash full potential of multi-cores CPU performanceFor CPU integrated GPU performanceProvide stable power for CPU integrated PCIe & Memory controllerPCIe 4.0 DesignGIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.DDR4 XMPSupport for DDR4 XMP Up to 5333MHz and Beyond*GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.Dual PCIe 4.0 x4 M.2GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.GIGABYTE PerfDrivePerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.OUTSTANDING THERMAL DESIGNGIGABYTE Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.Real One-piece BuildTMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.Multi-Cut DesignTMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.M.2 Thermal GuardWith durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.Thermal Throttling As Temperature RisesSMART FAN 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.Cooling FeaturesHigh Current SupportEach fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision ControlMultiple temperature/fan speed control points for precise fan curveDual Curve ModeSlope/Stair dual mode for different user scenarioFan StopFan can stop completely below users’ specified temperature pointCONNECTIVITY802.11ax Wi-Fi 6ELatest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.Benefit of Wi-Fi 6EDedicated spectrum in 6GHz band for less interference5.5X throughput than 802.11ac 1×1*4X better network capacity, no traffic jams especially in those dense area with lots of devicesNetwork efficiency increase for better user experienceFirst adopter on 2.5GbE LAN onboard2X Faster than everAdoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 EthernetConnecting the Future – Front USB3.2 Gen 2 Type-C®USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.Friendly User InterfaceThe EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.My FavoritesAdd constantly used items into the favorite menu for quick access.Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.Unified software platform for all Gigabyte supported productsIntuitive user interface for an eased experienceModularized control components only for installed hardwareAuto update function to keep system up to date and support future products
