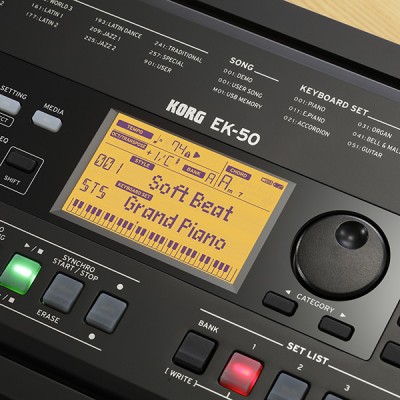

SPECIFICATIONS Keyboard: 61 keys (velocity sensitive) with three settings for touch control Sound Generator: Stereo PCM sound generator Maximum Polyphony: 64 voices Sounds: Over 702 sounds, 41 drum kits (including GM compatible sound sets) Keyboard Sets: more than 170 sets Effects: 34 types (148 variations) Styles: More than 280 presets Music Styles: 64 styles Demo Songs: 18 songs Audio Player: MP3, WAV (44.1 kHz) Scales: 11 types Metronome: Tempo, beat, volume Tempo: 30 – 240 Key Transpose: C (-12) to C (0) to C ( 12) Tuning: 427.5–452.9 Hz Foot Controller Jack: 6.3 mm (1/4″) phone jack Audio Input Jack: 3.5 (1/8″) mm stereo mini-phone jack Output L/ Mono, R jacks: 6.3 mm (1/4″) phone jack (unbalanced) Headphones Jack: 3.5 mm (1/8″) stereo mini-phone jack USB A Port: TO DEVICE port for connecting USB flash memory and controllers USB B Port: TO HOST port for connecting personal computers MIDI: USB MIDI Display: Custom LCD with backlighting Power Supply: AC adapter (included) or AA batteries (alkaline dry cells or nickel-metal hydride batteries) × 8 (sold separately) Battery Life: When using alkaline dry cells: approx. 5 hours Power Consumption: 8 W (0.1 W on standby) Dimensions (W x D x H): 994 mm × 392 mm × 132 mm/39.13″ × 15.43″ × 5.20″ (not including sheet music stand) Weight: 7.5 kg/16.53 lbs. (not including sheet music stand or batteries)
